Description
| Model | ΒΗ – MD40 | ΒΗ – MD50 | ΒΗ – MD60 | ΒΗ – MD80 |
|---|---|---|---|---|
| Capacity | 40hl/brew | 50hl/brew | 60hl/brew | 80hl/brew |
| Daily productivity | Up to 6 brews/24h (depending on the produce) Up to 8 brews/24h with system extensions |
|||
| Annual Productivity | (24h / 200 working days) |
48.000 – 64.000hl | 60.000 – 80.000hl | 72.000 – 96.000hl | 96.000 – 128.000hl |

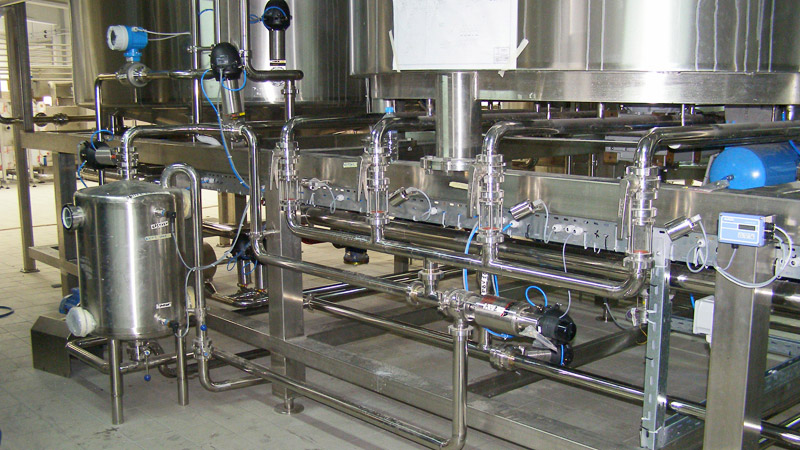

| System Configuration | Mixing tank | Filtration tank | Boiling tank | Whirpool tank | Access platform with workbench and ladder | Malt must pump, wort pump | Single phase wort cooling exchanger | Piping networks and valves | Hot liquor tank (hot liquor) | Cold water tank | |||
| Heating system | Saturated steam with steam boiler and diesel or gas or alternative fuel burner | |||
| Management system | Automatic pneumatic piping network valves, Siemens PLC, sensors and measurement instruments to control processes. 15-inch touchscreen control panel |
|||
| Automation | Εκτέλεση και ολοκλήρωση αυτόνομων βημάτων της διαδικασίας (step by step). Επέκταση αυτοματισμού για πλήρως αυτοματοποιημένη λειτουργία | |||
| Expandability | Up to 5 brews/24h with lauter tun expansion | |||
The configuration of the brewing systems is flexible and determined by the customer’s requirements, while the maximum productivity is established after defining the final configuration.
