Model B

0 out of 5

Fermentation Settling Tank

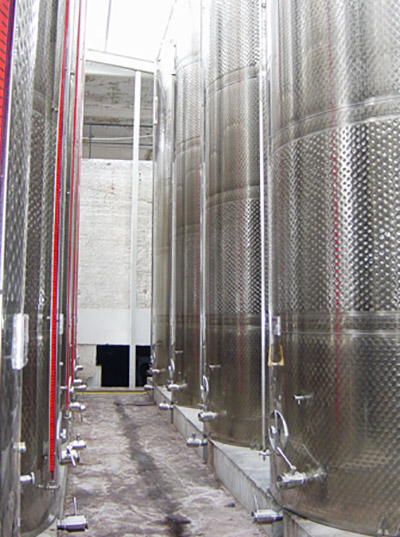

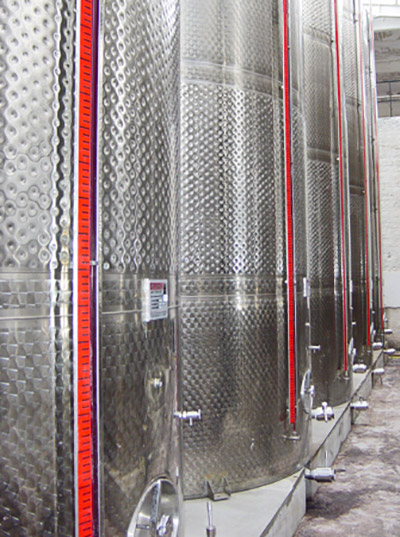

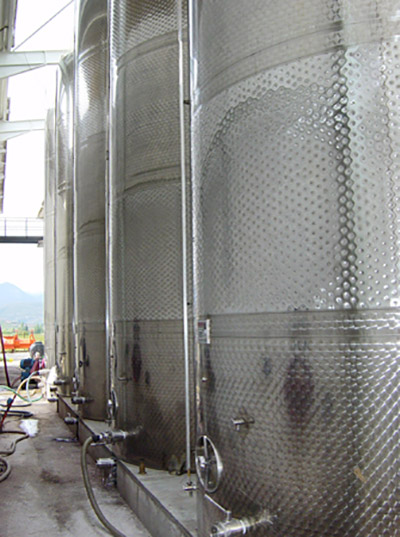

Tank for fermentation and settling of white wine in large quantities, with a slanting bottom of up to 3% and mounted in a concrete base. Cooling and maintenance of tank temperature is achieved with jackets on the cylindrical part, while operating pressure is atmospheric. The tank is equipped with a partial and total discharge valve, side and top inspection ports, locking and level gauges.

Categories: Fermentation Tanks, Wine

Technical Specifications
Dimensions

Description

CAPACITY m3	D – mm	Η – mm	C – mm	Z – mm
Model B 20	2400	4500	5050	72
Model B 25	2650	4500	5050	79.5
Model B 30	2950	4500	5100	88.5
Model B 30	2900	6000	6600	87
Model B 50	3250	6000	6650	97.5
Model B 60	3550	6000	6700	106.5
Model B 70	3450	7500	8150	103.5
Model B 80	3700	7500	8200	111
Model B 95	4000	7500	8250	120
Model B 150	5100	7500	8400	153
Model B 200	5820	7500	8450	174.5
Model B 250	6500	7500	8530	195
Model B 300	7100	7500	8600	213
Model B 500	8450	9000	10300	253.5
Model B 1000	10300	12000	13500	309
