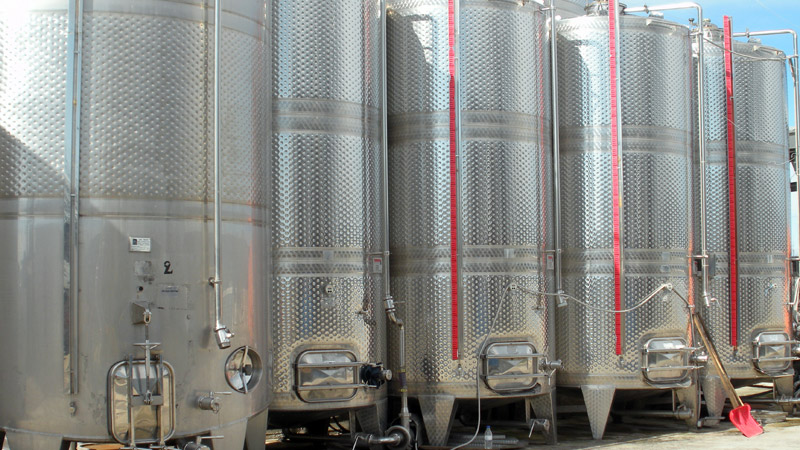

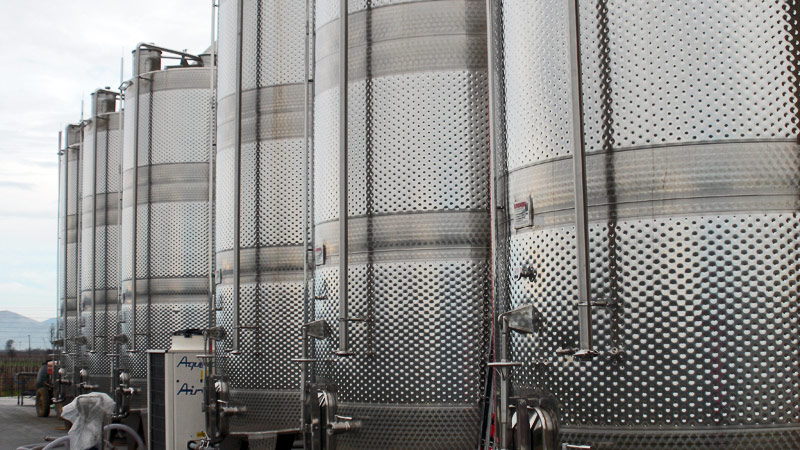

Tank for the fermentation of marc with a reclining bottom of up to 25% for easy discharge, and housed on feet. Cooling and maintenance of tank temperature is achieved with jackets on the cylindrical part, while operating pressure is atmospheric. The tank has a re-circulation system for the moistening of the marc via an external pump. It is also equipped with a total and partial discharge valve, a moistener, side and top inspection ports, a marc discharge port, locking and a level gauge.
| CAPACITY m3 | D – mm | H – mm | A – mm | B – mm | C – mm | Z – mm | A1 – mm |
|---|---|---|---|---|---|---|---|
| Model S 2 | 1400 | 1500 | 500 | 2000 | 2450 | 350 | 850 |
| Model S 2.5 | 1550 | 1500 | 500 | 2000 | 2450 | 387.5 | 587.5 |
| Model S 3 | 1700 | 1500 | 500 | 2000 | 2460 | 425 | 925 |
| Model S 5 | 1650 | 2500 | 500 | 3000 | 3460 | 412.5 | 912.5 |
| Model S 10 | 2150 | 3000 | 500 | 3500 | 4100 | 537.5 | 1037.5 |
| Model S 15 | 2650 | 3000 | 500 | 3500 | 4150 | 662.5 | 1162.5 |
| Model S 20 | 2450 | 4500 | 500 | 5000 | 5650 | 612.5 | 1112.5 |
| Model S 30 | 2950 | 4500 | 500 | 5000 | 5700 | 737.5 | 1237.5 |
1. Total discharge valve | 2. Re-circulation pump | 3. Sampler | 4. Thermometer | 5. Control panel | 6. Level gauge | 7. Moistener
