Model T

0 out of 5

Tank for the storage of distils or beverages.

Tank for the storage of distils or beverages, with a 15 degree conical bottom and housed on feet, while operating pressure is atmospheric. The tank is equipped with a partial and total discharge valve, a top and side inspection port, locking and a glass level gauge suitable for products with high alcohol content.

Categories: Spirits - Drinks, Storage Tanks

Description

CAPACITY m3 D – mm H – mm A – mm B – mm C – mm
Model T 2 1250 1500 450 1950 2330
Model T 2.5 1400 1500 450 1950 2350
Model T 3 1550 1500 450 1950 2360
Model T 5 1560 2500 450 2950 3370
Model T 10 2020 3000 500 3500 3980
Model T 15 2450 3000 600 3600 4150
Model T 20 2350 4500 600 5100 5600
2850 3000 700 3700 4300
Model T 25 2620 4500 700 5200 5750
Model T 30 2870 4500 700 5200 5800
Model T 40 2900 6000 700 6700 7300
Model T 50 2350 6000 800 6800 7450
Model T 60 3500 6000 800 6800 7500

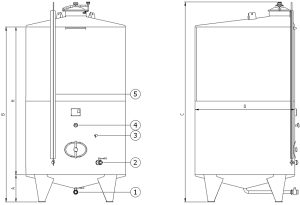

Dimensions

Gr Inox | Δεξαμενές Αποθήκευσης - Model T

1. Total discharge valve | 2. Partial discharge valve | 3. Sampler | 4. tank thermometer
