Model Z

0 out of 5

Fermentation Settling Tank

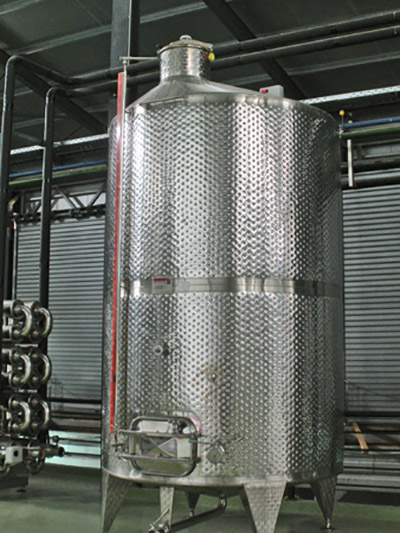

Tank for fermentation and settling of white wine, with a coned bottom of up to 15 degrees and mounted on feet. Cooling and maintenance of tank temperature is achieved with jackets on the cylindrical part, while operating pressure is atmospheric. The tank is equipped with a partial and total discharge valve, side and top inspection ports, locking and level gauges.

Categories: Fermentation Tanks, Wine

Technical Specifications
Dimensions

Description

CAPACITY m3	D – mm	Η – mm	A – mm	B – mm	C – mm
Model Z 2	1250	1500	450	1950	2330
Model Z 2.5	1400	1500	450	1950	2350
Model Z 3	1550	1500	450	1950	2360
Model Z 5	1560	2500	450	2950	3370
Model Z 10	2020	3000	500	3500	3980
Model Z 15	2450	3000	600	3600	4150
Model Z 20	2350	4500	600	5100	5600
Model Z 20	2850	3000	700	3700	4300
Model Z 25	2620	4500	700	5200	5750
Model Z 30	2870	4500	700	5200	5800
Model Z 40	2900	6000	700	6700	7300
Model Z 50	2350	6000	800	6800	7450
Model Z 60	3500	6000	800	6800	7500
