Model ZM

0 out of 5

Tank for mixing olive and vegetable oils

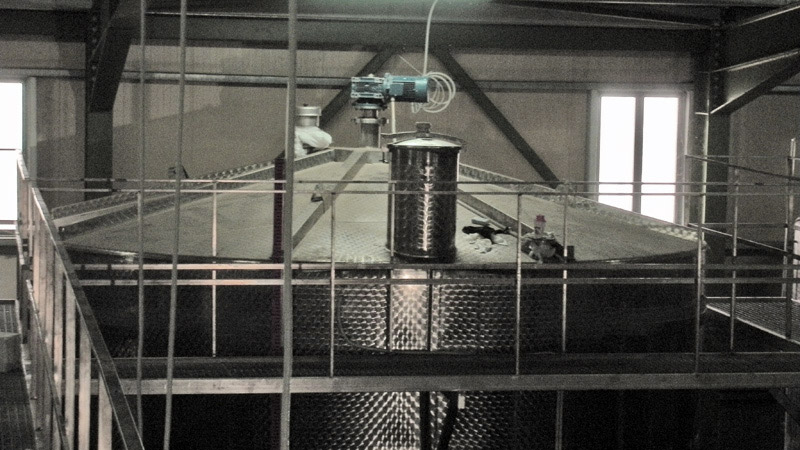

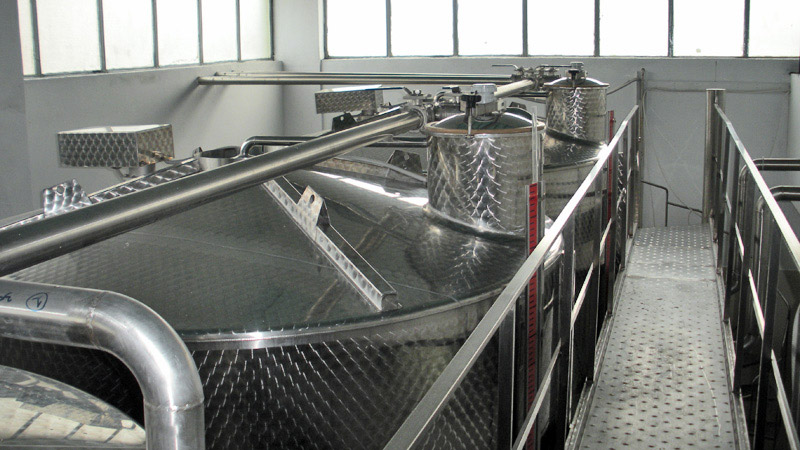

The MODEL ZMM mixing tank has a conical bottom of up to 15 degrees and is housed on feet. Cooling/heating and tank temperature maintenance is performed via jackets on the cylindrical part, while operating pressure is atmospheric. To mix the oil, the tank has a decentred roof stirrer. It is also equipped with a partial and total discharge valve, a top and side inspection port, locking and a level gauge.

Categories: Mixing Tanks, Oil

Description

CAPACITY m3 D – mm H – mm A – mm B – mm C – mm
Model ZM 2 1250 1500 450 1950 2330
Model ZM 2.5 1400 1500 450 1950 2350
Model ZM 3 1550 1500 450 1950 2360
Model ZM 5 1560 2500 450 2950 3370
Model ZM 10 2020 3000 500 3500 3980
Model ZM 15 2450 3000 600 3600 4150
Model ZM 20 2350 4500 600 5100 5600
2850 3000 700 3700 4300
Model ZM 25 2620 4500 700 5200 5750
Model ZM 30 2870 4500 700 5200 5800
Model ZM 40 2900 6000 700 6700 7300
Model ZM 50 2350 6000 800 6800 7450
Model ZM 60 3500 6000 800 6800 7500

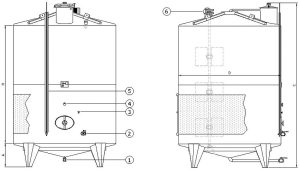

Dimensions

Gr Inox | Λάδι -Δεξαμενή ανάμιξης - Model ZM

1. Total discharge valve | 2. Partial discharge valve | 3. Sampler | 4. Thermometer | 5. Level gauge | 6. Stirring
